Socket Weld Cross

Socket Weld Cross

ASME B 16.11 / ANSI B16.9 Socket Weld Cross, MSS SP-43 Forged Socket Weld Cross, BS3799 Threaded Socket Weld Cross Manufacturer & Supplier in Mumbai, India

ANSI B16.11 Socket Weld Cross Exporter, ASTM A182 Socket Weld Equal Cross, Socket Weld Unequal Cross, Socket Weld Reducing Cross Dealers & Exporters

At Nakshatra Steel, we are one of the topmost and leading manufacturers, stockist, exporter and supplier of Socket Weld Cross based in Mumbai, India. We are engaged in offering socket weld cross fittings that being designed from outstanding quality steel and contemporary technology in compliance with national and international standards.

Our offered Socket Weld Cross features great resistant to corrosion, high tensile strength, impeccable finish and accurate dimension. ANSI / ASME B16.11 Socket Weld Cross has excellent resistance to chloride-ion stress-corrosion cracking, and as well shows appropriate resistance to a number of oxidizing environments.

Socket weld cross fittings are highly demanded among the customers all across the country. This Forged Socket Weld Cross fittings are accessible to our valuable customers in different range of diameters, wall thicknesses and sizes in customized form and also at quite affordable rates. Furthermore, we offer different types of these fitting such as Stainless Steel Socket Weld Cross, Inconel Socket Weld Cross, Carbon Steel Socket Weld Cross, and Alloy Steel Socket Weld Cross.

Also, this Threaded Socket Weld Cross is very much resistant to chemical corrosion and oxidation and has some high stress-rupture effectiveness and low creep rates under high stresses at temperatures after suitable heat treatment. Call us now to request a free quote; we are here to help you!

ASTM A182 Stainless Steel Socket Weld Cross, Alloy Steel Socket Weld Cross, Carbon Steel Socket Weld Pipe Cross, Nickel Alloy Socket Weld Cross Dealer & Wholesaler in India

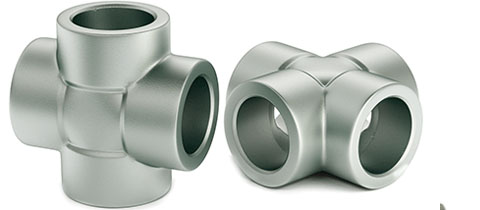

Socket Weld Cross

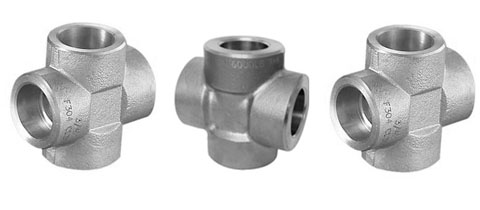

SS Socket Weld Cross

Specifications for Socket Weld Cross

Specifications : ASTM A182, ASTM SA182
Dimension : ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size : 1/8" NB TO 4" NB
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Range : Reducing Cross, Unequal Cross, Equal Cross, Forged Cross.
Type : Socket Weld (S/W) & Screwed (SCRD)
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Material & Grades of Socket Weld Cross

Stainless Steel Cross Socket Weld Fittings
ASTM A182, ASTM / ASME SA 358, ASTM / ASME SA 312 GR. TP304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.
Carbon Steel Cross Socket Weld Fittings
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2
Alloy Steel Cross Socket Weld Fittings
ASTM / ASME A 182, ASTM / ASME A 335 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
Nickel Alloy Cross Socket Weld Fittings
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
Duplex & Super Duplex Steel Cross Socket Weld Fittings
ASTM A182, ASTM / ASME SA 790 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
Copper Alloy Steel Cross Socket Weld Fittings
ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600, C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

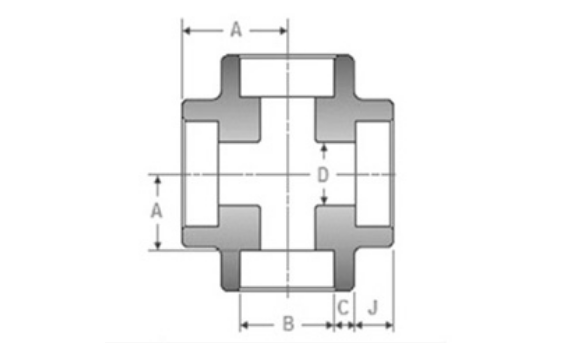

ANSI 16.9 Socket Weld Equal Cross Dimensions

Socket Weld Equal Cross Dimensions
NPS Socket
Bore		 Depth
Socket		 Bore
diameter		 Socket
wall thickness		 Body
wall thickness		 Center to bottom
of socket
B J D C G A
1/2 21.95
21.70		 10 16.6
15		 4.65
4.10		 3.75 15.5
3/4 27.30
27.05		 13 21.7
20.2		 4.90
4.25		 3.90 19.5
1 34.05
33.80		 13 27.4
25.9		 5.70
5.00		 4.55 22
1¼ 42.80
42.55		 13 35.8
34.3		 6.05
5.30		 4.85 27
1½ 48.90
48.65		 13 41.7
40.1		 6.35
5.55		 5.10 32
2 61.35
61.10		 16 53.5
51.7		 6.95
6.05		 5.55 38
2½ 74.20
73.80		 16 64.2
61.2		 8.75
7.65		 7.00 41.5
3 90.15
89.80		 16 79.5
46.4		 9.50
8.30		 7.60 57.5
4 115.80
115.45		 19 103.8
100.7		 10.70
9.35		 8.55 66.5

Dimensions Socket Weld Cross - NPS 1/2 to 2 - 6000 LBS - ASME B16.11

NPS Socket
Bore		 Depth
Socket		 Bore
diameter		 Socket
wall thickness		 Body
wall thickness		 Center to bottom
of socket
B J D C G A
1/2 21.95
21.70		 10 12.5
11		 5.95
5.20		 4.80 19.5
3/4 27.30
27.05		 13 16.3
14.8		 6.95
6.05		 5.55 22.5
1 34.05
33.80		 13 21.5
19.9		 7.90
6.95		 6.35 27
1¼ 42.80
42.55		 13 30.2
28.7		 7.90
6.95		 6.35 32
1½ 48.90
48.65		 13 34.7
33.2		 8.90
7.80		 7.15 38
2 61.35
61.10		 16 43.6
42.1		 10.90
9.50		 8.75 41

Types of Socket Weld Cross

Forged Socket weld Cross Forged Socket weld Equal Cross
150 lb. Socket Weld Fittings Pipe Cross Socket weld Forged Equal Cross
ASME B16.11 Socket weld Cross Forged Cross 3000LB Socket Weld
Stainless Steel Equal Cross Suppliers SS Forged Socket weld Equal Cross
ANSI B16.11 Forged Socket weld Cross Dealer BS 3799 Forged Equal Cross Exporter
Forged Socket weld Cross Stockholder Socket weld Forged Pipe Cross Distributors
Carbon Steel Socket weld Equal Cross High Quality Socket weld Cross Manufacturer
ASTM A182 Socket weld Stainless Steel Cross Duplex Steel Socket weld Equal Cross
Super Duplex Steel Equal Cross Copper Nickel Socket weld Equal Cross
High Nickel Alloy 45° Forged Socket weld Cross Hastelloy Socket weld 45° Pipe Cross Stockist
Titanium Socket weld Cross Inconel Socket weld Pipe Cross
