45 Degree Long Radius Elbow

45 Degree Long Radius Elbow

Stainless Steel 45 Deg Long Radius Elbow, Carbon Steel 45 Degree Long Radius Elbow, Alloy Steel 45 Degree Long Radius Elbow, Nickel Alloy 45 Deg Long Radius Elbow Manufacturer & Supplier

ANSI/ASME B16.9 45 Degree Long Radius Elbow / LR Elbow Dealer & Exporter in India

At Nakshatra Steel & Alloys, we are global leader manufacturer and supplier, stockist of the highest quality 45 Degree Long Radius Elbow in India. We offer large diameter and high tensile Buttweld 45° long Radius Elbow which is manufactured using best in class raw materials. We also deliver personalized 45 Degree long Radius Elbow as per specifications provided by our clients.

An elbow is a pipe fitting employed between two lengths of pipe or tubing to connect pipes and change of direction, these elbows may be machined for butt welding (BW) or socketed welding (SW) etc. The ASME B16.9 45 45 Degree Long Radius Elbow find wide applications in various fields such as chemical, construction, Power Plant, Cement, Paper, etc.

A wide range of material is being used at our facility to produce and design 45° long Radius Elbow which commonly includes Stainless Steel 45° Long Radius Elbow, Carbon Steel, Alloy Steel, Nickel Alloy, Aluminium and many more to be installed in various industrial applications.

Our ANSI B16.9 45 Degree long Radius Elbow is corrosion resistance, sturdy and durable. Contact us with your requirements and we assure you to offer products that meet your specific needs and demands, with an unparalleled quality and service.

45° Long Radius Elbow

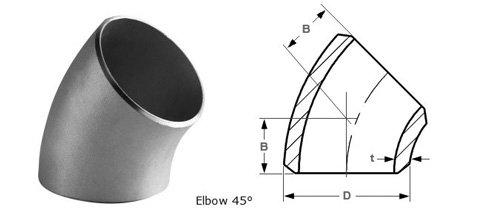

Stainless Steel 45° Long Radius Elbow

Buttweld 45 Degree Long Radius Elbow Fittings Specifications:

Standard - ANSI/ASME : ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN : EN10253-1, EN10253-2
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated
Seamless 45 Degree Long Radius Elbow Size : 1/2"~24"
ERW / Welded / Fabricated 45 Degree Long Radius Elbow Size : 1/2" (15 NB) to 48" (1200NB)
Form : 45 Degree Long Radius Elbow

Buttweld 45 Degree Long Radius Elbow Material & Grades

Stainless Steel 45 Deg. Long Radius Elbow
ASTM A403 WP316/316L, ASTM A403 WP304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel 45 Degree Long Radius Elbow
ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Alloy Steel 45 Degree Long Radius Elbow
ASTM A234, ASME SA234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91
Duplex Steel 45 Deg. Long Radius Elbow
ASTM A815, ASME SA815 UNS No S31803, S32205
Super Duplex 45 Degree Long Radius Elbow
ASTM A815, ASME SA815 UNS No S32750, S32950
Nickel Alloy 45 Deg. Long Radius Elbow
ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.
Low Temperature Carbon Steel 45 Degree Long Radius Elbow
ASTM A420 WPL3, A420 WPL6

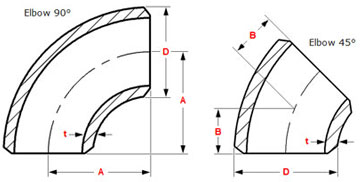

PIPE FITTINGS 45 DEGREE LONG RADIUS ELBOW DIMENSIONS :

45 Degree Long Radius Elbow
NPS O.D.
D		 90 degrees
Long Radius
Center-to-End
A		 45 degrees
Long Radius
Center-to-End
B		 90 degrees
3D
Center-to-End
A		 45 degrees
3D
Center-to-End
B
1/2 21.3 38 16 - -
3/4 26.7 38 19 57 24
1 33.4 38 22 76 31
1 ¼ 42.2 48 25 95 39
1 ½ 48.3 57 29 114 47
2 60.3 76 35 152 63
2 ½ 73 95 44 190 79
3 88.9 114 51 229 95
3 ½ 101.6 133 57 267 111
4 114.3 152 64 305 127
5 141.3 190 79 381 157
6 168.3 229 95 457 189
8 219.1 305 127 610 252
10 273 381 159 762 316
12 323.8 457 190 914 378
14 355.6 533 222 1067 441
16 406.4 610 254 1219 505
18 457 686 286 1372 568
20 508 762 318 1524 632
22 559 838 343 1676 694
24 610 914 381 1829 757
26 660 991 406 1981 821
28 711 1067 438 2134 883
30 762 1143 470 2286 964
32 813 1219 502 2438 1010
34 864 1295 533 2591 1073
36 914 1372 565 2743 1135
38 965 1448 600 2896 1200
40 1016 1524 632 3048 1264
42 1067 1600 660 3200 1326
44 1118 1676 695 3353 1389
46 1168 1753 727 3505 1453
48 1219 1829 759 3658 1516

Call +91 9833263204 or Click here to send enquiry for 45 Degree Long Radius Elbow

45° Long Radius Elbow Buttweld Fitting Exporters & Suppliers

Exporting 45° Long Radius Elbow Buttweld Fitting to Countries

We are exporting 45° Long Radius Elbow Buttweld Fitting to Kuwait, Yemen, Slovakia, Iran, Angola, Portugal, Romania, Serbia, China, Saudi Arabia, Afghanistan, Croatia, Lithuania, Poland, Zimbabwe, Peru, Macau, Japan, Philippines, Singapore, Mexico, Mongolia, Hong Kong, Norway, Israel, Bangladesh, Bhutan, Kenya, South Korea, Switzerland, Thailand, Gabon, Italy, Mexico, Sri Lanka, Netherlands, Turkey, Czech Republic, Tibet, Australia, Morocco, Nepal, Denmark, Iran, United Arab Emirates, Jordan, Belarus, Russia, Chile, Ukraine, Oman, Kazakhstan, Taiwan, Argentina, Finland, Chile, Ghana, Azerbaijan, Brazil, Ireland, Nigeria, Indonesia, Ecuador, Lebanon, Gambia, Sweden, Bulgaria, Hungary, India, United Kingdom, Vietnam, Greece, United States, France, Spain, Libya, Pakistan, Canada, Namibia, Poland, Bahrain, Bolivia, Venezuela, Qatar, Iraq, Austria, Belgium, Nigeria, Germany, South Africa, Malaysia, Egypt, Algeria, Costa Rica, Estonia, Trinidad & Tobago,Tunisia, Puerto Rico, New Zealand, Colombia. We can export almost to any country.

Industries We Serve

We are supplying 45° Long Radius Elbow Buttweld Fitting to Chemicals, Petrochemicals, Oil & Natural Gas Organization, Fats, Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Automation, Paints, Steel Industries, etc.
