Equal Cross

Equal Cross

Stainless Steel Equal Cross, SS Equal Cross Fittings, Carbon Steel Equal Cross, Nickel Alloy Equal Cross, Alloy Steel Equal Cross, Monel Equal Cross Pipe Fittings Manufacturer & Exporter

ASME / ASTM B16.9 Buttweld Equal Cross Fittings Suppliers & Dealers in India

The equal cross is a type of the pipe fittings. Similar to an equal tee, this equal cross has 4 ends of the cross are in equal diameter. Nakshatra Steel & Alloys is one of the leading Manufacturers, supplier, stockists and exporter of a wide range of quality Equal Cross Fitting which is ideal for multiple connections of pipes. We have a team of highly skilled professionals with years of experience in manufacturing customized Butt weld Equal Pipe Cross for various industrial purposes.

We offer this ASME B16.9 Equal Cross made from a wide range of material which includes Stainless Steel Equal Cross, Carbon Steel Equal Cross, Alloy Steel Equal Cross, etc. We are known as a specialist in Equal Cross available in a wide range of dimensions which makes them suitable for interlinked plumbing systems.

Our ASME B16.9 Equal Cross is certainly capable of handling any high or low-pressure flow of liquid through it.  We offer to our customer’s third-party inspection of ANSI B16.9 Equal Cross from reputed agencies such as EIL, H&G, LLOYDS, TCE, MECONS, PDIL, Bureau Veritas, DNV, DPG, SGS, IRS, etc. We have the specialization to manufacture customized ASME B16.9 Butt weld Equal Tee per customers’ specifications.

Please contact us or Email your specific requirement. We assure you with best in class and excellent services at best price range.

Equal Cross

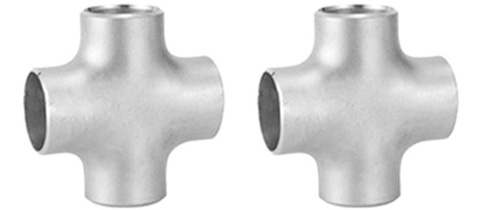

Stainless Steel Equal Cross

Buttweld Equal Cross Specifications:

Standards : ANSI – B 16.9, ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’, API 590-605, ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings”, ASME B16.25 – ‘Buttwelding Ends’, ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’, MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’
Schedule : Sch 5 TO Sch XXS.
Sizes : 1/2"NB TO 48"NB IN / 1/2” TO 36”, (SEAMLESS UPTO 24”), (WELDED 8” TO 36” )
Materials : Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30, Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Type : Butt Weld (BW) / Seamless / ERW / Welded / Fabricated
Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Dimension : ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

Buttweld Equal Cross Material & Grades

Stainless Steel Buttweld Equal Cross
ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Duplex & Super Duplex Steel Buttweld Equal Cross
ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462
Carbon Steel Buttweld Equal Cross
ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Buttweld Equal Cross
ASTM A420 WPL3, A420 WPL6
Alloy Steel Buttweld Equal Cross
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Nickel Alloy Buttweld Equal Cross
ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.

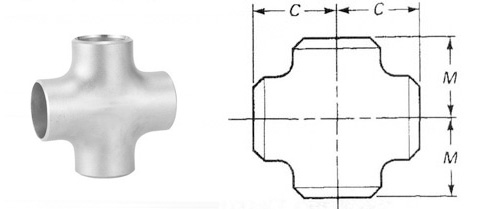

EQUAL CROSS DIMENSIONS :

Equal Cross
Nominal Pipe Size (NPS)

DN

 Outside Diameter at Bevel

Center- to-End

Run.C

 Outlet. M[Notes(1) and (2)]
1/2 15 21.3 25 25
3/4 20 26.7 29 29
1 25 33.4 38 38
1-1/4 32 42.2 48 48
1-1/2 40 48.3 57 57
2 50 60.3 64 64
2-1/2 65 73.0 76 76
3 80 88.9 86 86
3-1/2 90 101.6 95 95
4 100 114.3 105 105
5 125 141.3 124 124
6 150 168.3 143 143
8 200 219.1 178 178
10 250 273.0 216 216
12 300 323.8 254 254
14 350 355.6 279 279
16 400 406.4 305 305
18 450 457 343 343
20 500 508 381 381
22 550 559 419 419
24 600 610 432 432
26 650 660 495 495
28 700 711 521 521
30 750 762 559 559
32 800 813 597 597
34 850 864 635 635
36 900 914 673 673
38 950 965 711 711
40 1000 1016 749 749
42 1050 1067 762 711
44 1100 1118 813 762
46 1150 1168 851 800
48 1200 1219 889 838

Call +91 9833263204 or Click here to send enquiry for Cross

Equal Cross Buttweld Fitting Exporters & Suppliers

Exporting Equal Cross Buttweld Fitting to Countries

We are exporting Equal Cross Buttweld Fitting to Kuwait, Yemen, Slovakia, Iran, Angola, Portugal, Romania, Serbia, China, Saudi Arabia, Afghanistan, Croatia, Lithuania, Poland, Zimbabwe, Peru, Macau, Japan, Philippines, Singapore, Mexico, Mongolia, Hong Kong, Norway, Israel, Bangladesh, Bhutan, Kenya, South Korea, Switzerland, Thailand, Gabon, Italy, Mexico, Sri Lanka, Netherlands, Turkey, Czech Republic, Tibet, Australia, Morocco, Nepal, Denmark, Iran, United Arab Emirates, Jordan, Belarus, Russia, Chile, Ukraine, Oman, Kazakhstan, Taiwan, Argentina, Finland, Chile, Ghana, Azerbaijan, Brazil, Ireland, Nigeria, Indonesia, Ecuador, Lebanon, Gambia, Sweden, Bulgaria, Hungary, India, United Kingdom, Vietnam, Greece, United States, France, Spain, Libya, Pakistan, Canada, Namibia, Poland, Bahrain, Bolivia, Venezuela, Qatar, Iraq, Austria, Belgium, Nigeria, Germany, South Africa, Malaysia, Egypt, Algeria, Costa Rica, Estonia, Trinidad & Tobago,Tunisia, Puerto Rico, New Zealand, Colombia. We can export almost to any country.

Industries We Serve

We are supplying Equal Cross Buttweld Fitting to Chemicals, Petrochemicals, Oil & Natural Gas Organization, Fats, Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Automation, Paints, Steel Industries, etc.
