Ball Valve
Industrial Ball Valve, Two Way Ball Valves, Three Way Ball Valves, Four Way Ball Valves Manufacturer & Supplier in India
Stainless Steel Ball Valves, Carbon Steel Ball Valves, Alloy Steel Ball Valves, Brass Ball Valves Stockist & Dealers
Ball Valves are basic industrial necessities which generally consist of a ball which controls the fluid flow inside a piping system. Nakshatra Steel & Alloys is an esteemed Ball Valves Supplier and Manufacturer. Our products have huge demand in the market for which we always maintain sufficient Ball Valves Stock.
All of our Industrial Ball Valves are fabricated using pure metals and materials which are acquired from genuine vendors of the market. We manufacture all the Ball Valve Types in all the national and international standards. Though you utilize our Flanged End Ball Valve and Screwed End Ball Valve for many cycles, they retain their strength for long time.
The exemplary features of our Butt Weld End Ball Valve and Socket Weld End Ball Valve make them suitable for control and shutoff applications. Depending upon Ball Valve Specification we finely finish them with extreme dimensional accuracy. The ease of installation and use of our Stainless Steel Ball Valves makes them preferable.
We hire well experienced and trained personnel to design Alloy Steel Ball Valves and Aluminium Ball Valves in a skillful manner. We maintain friendly relations with all of our clients. Every now and then, we collect the feedback about our Brass Ball Valves and Bronze Ball Valves from our customers.
Sizes and shapes of the ball valve are altered if you wish to. All of your goods are safely packed in wooden boxes to assure hassle free transit. Now place your order right now!
Ball Valve Specifications:
Type | : | One Piece, Two Piece, Three Piece, 3 Way, 4 Way |
Size | : | 6mm to 750mm |
Body Material | : | CI, CS, SS, AS, A 105, CF3, CF3M, CN7M, WCB, CF8, CF8M, Alloy 20 |
End Connection | : | Flanged End / Screwed End / Butt Weld End / Screwed to BSPT / NPT / Socket Weld / Buttweld with extended Nipple |
Pressure Rating | : | ASA 150#, 300#, 600#, 800#, 900#, 1500#, 2500# |
Optional | : | Trunnion Motorised Ball, Manual Gearbox or Motorised Operation |
Operation | : | Lever, Gear, Electrical Actuator, Pneumatic Rotary Actuator |
Design & Mfg. Standard | : | API-6D, BS-5351, BS-5159, ISO 17292 |
Seat & Seals | : | PTFE, Reinforced PTFE, Buna-N, Graphoil, Graphite |
Dimensions of Ball Valves
Standards
Standards
Scope | Standard | |
Design* | ISO 17292/ API 6D | |
End-to-End | Socket-weld ends | ASME B16.11 |
Screwed-end BSPT | ISO 7-1 | |
Screwed-end NPT | ASME B1.20.1 | |
End flange | ASME B16.5 RF/ FF/ RTJ | |
Face-to-face (Flanged) | ASME B16.10 | |
Pressure testing | ISO 5208/ API 598 | |
Fire Test | ISO 10497/ API 607 |
Test Pressures (bar)
Test Pressures (bar)
Class 150 | Class 300 | Class 600* | |
Shell - Hydrostatic | 30 | 77 | 155 |
Seat - Hydrostatic | 22 | 56 | 113 |
Seat - Pneumatic | 5.5 | 5.5 | 5.5 |

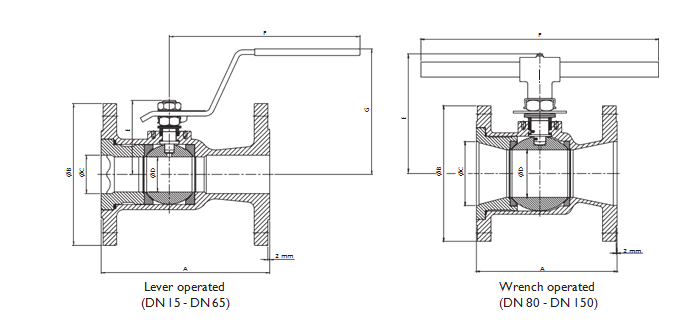

Single-piece Ball Valves - Regular Bore (ASME Class 150 & 300)
Single-piece Ball Valves - Regular Bore (ASME Class 150 & 300)
| ||||||||||||||
Size | A | B | C | D | E | F | G | Wt. | ISO 5211 Base | |||||
DN | NPS | Cl 150 | Cl 300 | Cl 150 | Cl 300 | Cl 150 | Cl 300 | Cl 150 | Cl 300 | |||||
15 | ½ | 108 | 140 | 90 | 95 | 13 | 11 | 38 | 120 | 90 | 1 | 2 | F03 | F03 |
20 | ¾ | 117 | 152 | 100 | 115 | 19 | 11 | 38 | 120 | 90 | 1 | 2.5 | F03 | F03 |
25 | 1 | 127 | 165 | 110 | 125 | 25 | 17 | 46 | 140 | 100 | 2 | 4 | F03 | F03 |
40 | 1½ | 165 | 190 | 125 | 155 | 38 | 27 | 56 | 180 | 115 | 4 | 4.5 | F04 | F04 |
50 | 2 | 178 | 216 | 150 | 165 | 51 | 37 | 75 | 210 | 122 | 6.5 | 9 | F05 | F05 |
65 | 2½ | 190 | 241 | 180 | 190 | 64 | 49 | 102 | 210 | 142 | 11 | 15 | F07 | F07 |
80 | 3 | 203 | 282 | 190 | 210 | 76 | 62 | 175 | 390 | 15.5 | 22 | F07 | F07 | |
100 | 4 | 229 | 305 | 230 | 255 | 102 | 74 | 195 | 390 | 25 | 35 | F07 | F07 | |
150 | 6 | 267 | 403 | 280 | 320 | 152 | 98 | 245 | * | 40 | 65 | F10 | F12 |
All dimensions in mm and weights in kg

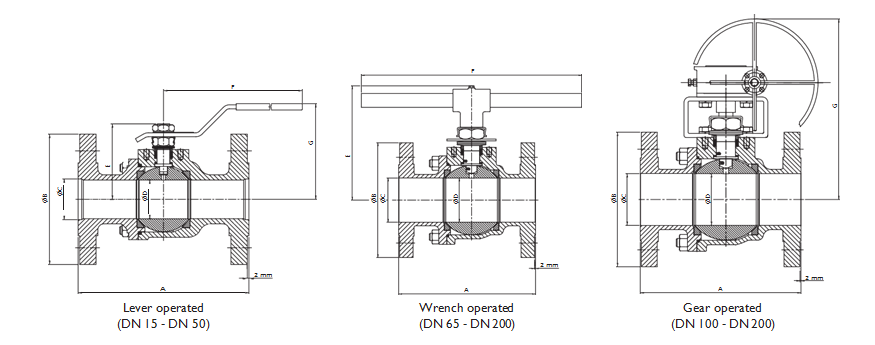

Two-piece Ball Valves - Full Bore (ASME Class 150 & 300)
Two-piece Ball Valves - Full Bore (ASME Class 150 & 300)
| |||||||||||||||
Size | A | B | C | D | E | F | G | Wt. | ISO 5211 Base | ||||||
DN | NPS | Cl 150 | Cl 300 | Cl 150 | Cl 300 | Cl 150 | Cl 300 | Cl 150 | Cl 300 | Cl 150 | Cl 300 | ||||
15 | ½ | 108 | 140 | 90 | 95 | 13 | 11 | 38 | 38 | 120 | 90 | 1 | 2 | ||
20 | ¾ | 117 | 152 | 100 | 115 | 19 | 17 | 45 | 45 | 120 | 97 | 2 | 3 | ||
25 | 1 | 127 | 165 | 110 | 125 | 25 | 24 | 55 | 55 | 158 | 97 | 3 | 4 | ||
40 | 1½ | 165 | 190 | 125 | 155 | 38 | 37 | 75 | 75 | 212 | 122 | 5 | 6 | F05 | F05 |
50 | 2 | 178 | 216 | 150 | 165 | 51 | 49 | 103 | 103 | 212 | 142 | 9 | 12 | F07 | F07 |
65 | 2½ | 190 | 241 | 180 | 190 | 64 | 62 | 175 | 175 | 390 | 14 | 20.5 | F07 | F07 | |
80 | 3 | 203 | 282 | 190 | 210 | 76 | 74 | 185 | 195 | 390 | 19 | 28 | F07 | F07 | |
100 | 4 | 229 | 305 | 230 | 255 | 102 | 98 | 235 | 247 | * | 31 | 45 | F10 | F12 | |
150 | 6 | 394 | 403 | 280 | 320 | 152 | 148 | 285 | 315 | ** | 78 | 105 | F12 | F14 | |
200 | 8 | 457 | 502 | 345 | 380 | 203 | 198 | 345 | 371 | 980 | 141.5 | 169 | F14 | F16 |
All dimensions in mm and weights in kg

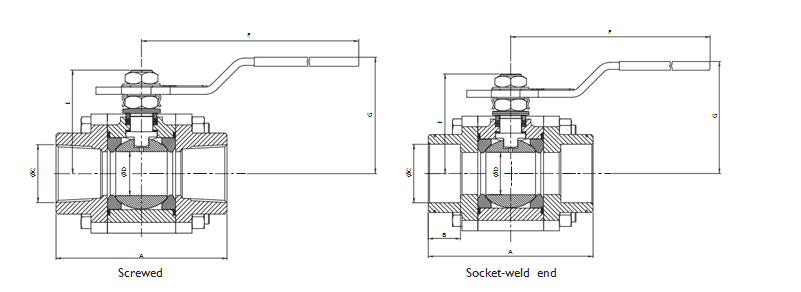

Three-piece Ball Valves - Full Bore (ASME Class 150, 300, 600 & 2500)
Three-piece Ball Valves - Full Bore (ASME Class 150, 300, 600 & 2500)
| |||||||||||
Size | A | B | C | D | E | F | G | Wt. | |||
DN | NPS | SW | BSPT | NPT | |||||||
8 | ¼ | 62 | 9.5 | 14.6 - 14.2 | ¼“ - 19 | ¼“ - 18 | 11 | 38 | 132 | 50 | 1 |
10 | 3 8 | 62 | 9.5 | 18.0 - 17.6 | 3 8 †- 19 | 3 8 †- 18 | 11 | 38 | 132 | 50 | 1 |
15 | ½ | 66 | 10 | 22.2 - 21.8 | ½“ - 14 | ½“ - 14 | 11 | 38 | 132 | 50 | 1 |
20 | ¾ | 75 | 13 | 27.6 - 27.2 | ¾“ - 14 | ¾“ - 14 | 17 | 46 | 132 | 58 | 1 |
25 | 1 | 92 | 13 | 34.3 - 33.9 | 1“ - 11 | 1“ - 11½ | 24 | 54 | 162 | 65 | 2 |
32 | 1¼ | 114 | 13 | 43.1 - 42.7 | 1¼“ - 11 | 1¼“ - 11½ | 37 | 75 | 192 | 83 | 4 |
40 | 1½ | 114 | 13 | 49.2 - 48.8 | 1½“ - 11 | 1½“ - 11½ | 37 | 75 | 192 | 83 | 4 |
50 | 2 | 132 | 16 | 61.7 - 61.2 | 2“ - 11 | 2“ - 11½ | 49 | 87 | 202 | 94 | 6 |
65 | 2½ | 185 | 16 | 74.4 - 73.9 | 2½“ - 11 | 2½“ - 8 | 62 | 200 | 390 | 200 | 15.5 |
80 | 3 | 208 | 16 | 90.3 - 89.8 | 3“ - 11 | 3“ - 8 | 74 | 225 | 390 | 225 | 25 |
100 | 4 | 240 | 19 | 115.7 - 115.2 | 4“ - 11 | 4“ - 8 | 98 | 250 | 600 | 250 | 39 |
All dimensions in mm and weights in kg
Types Of Ball Valves
inline ball valves 2 piece valves | Inline Ball Valves 3 Piece Valves |
Mini Ball Valve | Inline Mini Ball Valves 3 Piece Valves |
Inline Ball Valves Seal Welded Valves | Ball Valves |
Inline Fire Safe Ball Valves | Pneumatic Actuated Ball Valves |
Inline Pneumatic Actuated Ball Valves | Inline Ball Valves |
2 Way Sanitary Ball Valves | 3 Way Ball Valves |
Electric Actuated Ball Valves | Water Thief Valves |
Wye Ball Valves | Mnpt X Fnpt Ball Valves |
Electronic Actuated Ball Valves | 3 Way Sanitary Ball Valves |
Hvac Control Ball Valves | 3 Way Mini Ball Valves |
Siamese Ball Valves | Flanged X Flanged Ball Valves |
Fnpt X Fnpt Ball Valves | Socket X Socket Ball Valves |
Inline Ball Valves | Inline Mini Ball Valves ASME Classes 150, 300 and 600 |
Top Entry Ball Valves ASME Classes 150, 300 and 600 | Top Entry Ball Valves (DN 15 to DN 300) |
Top Entry Ball Valves | Flanged Ball Valve |
Threaded Ball Valve | Double Union End Ball Valve |
Socket Weld Ball Valve | Ball Valve Threaded, 2-Piece |
Ball Valve, Spring Return Handle, 2000 CWP to 1″, 1500 CWP | Ball Valve, ISO Mounting Pad |
Ball Valve Threaded, Full Port | Buttweld Ball Valve |
Ball Valve, ASME Class 600 | Ball Valve Buttweld, Full Port |
Ball Valve Threaded, Full Port | Ball Valve Socket-weld, Full Port |
Butt-Weld Ball Valve with Actuator Ready ISO Mounting Pad | Ball Valve, 800 CWP, Sizes: 1/4″ to 2″ |
Flanged Ball Valve, ASME Class 150RF |
Material & Grades Of Ball Valves
SS 316 inline ball valves 2 piece valves | SS 316 Inline Ball Valves 3 Piece Valves |
SS 316 Mini Ball Valve | SS 316 Inline Mini Ball Valves 3 Piece Valves |
SS 316 Inline Ball Valves Seal Welded Valves | SS 316 Ball Valves |
SS 316 Inline Fire Safe Ball Valves | SS 316 Pneumatic Actuated Ball Valves |
SS 316 Inline Pneumatic Actuated Ball Valves | SS 316 Inline Ball Valves |
SS 316 2 Way Sanitary Ball Valves | SS 316 3 Way Ball Valves |
SS 316 Electric Actuated Ball Valves | SS 316 Water Thief Valves |
SS 316 Wye Ball Valves | SS 316 Mnpt X Fnpt Ball Valves |
SS 316 Electronic Actuated Ball Valves | SS 316 3 Way Sanitary Ball Valves |
Hvac Control SS 316 Ball Valves | SS 316 3 Way Mini Ball Valves |
SS 316 Siamese Ball Valves | SS 316 Flanged X Flanged Ball Valves |
SS 316 Fnpt X Fnpt Ball Valves | SS 316 Socket X Socket Ball Valves |
SS 316 Top Entry Ball Valves ASME Classes 150, 300 and 600 | SS 316 Top Entry Ball Valves (DN 15 to DN 300) |
SS 316 Top Entry Ball Valves | SS 316 Flanged Ball Valve |
SS 316 Threaded Ball Valve | SS 316 Double Union End Ball Valve |
SS 316 Socket Weld Ball Valve | SS 316 Ball Valve Threaded, 2-Piece |
SS 316 Ball Valve, Spring Return Handle, 2000 CWP to 1″, 1500 CWP | SS 316 Ball Valve, ISO Mounting Pad |
SS 316 Ball Valve Threaded, Full Port | SS 316 Buttweld Ball Valve |
SS 316 Ball Valve, ASME Class 600 | SS 316 Ball Valve Buttweld, Full Port |
SS 316 Ball Valve Threaded, Full Port | Ball Valve Socket-weld, Full Port |
SS 316 Butt-Weld Ball Valve with Actuator Ready ISO Mounting Pad | SS 316 Ball Valve, 800 CWP, Sizes: 1/4″ to 2″ |
SS 316 Flanged Ball Valve, ASME Class 150RF | SS 316 Inline Mini Ball Valves ASME Classes 150, 300 and 600 |
Stainless steel Manual Ball Valves | Stainless steel 2 piece ball valve |
Stainless Steel 304 Ball Valves | Stainless Steel 316 Ball Valves |
Stainless Steel 321 Ball Valves | SS 316L Ball Valves Distributors |
Parker instrumentation ball valves Distributors | Top Quality SS 316H Ball Valves Exporter |
Stainless Steel 304L Ball Valves | ASME B16.10 SS 310 Ball Valves Suppliers |
Stainless Steel 310S Ball Valves Manufacturer | 317L SS Ball Valves Stockiest in India |
317 Stainless Steel Ball Valves Dealers | Stainless Steel 321H Ball Valves |
SS 347 Trunnion Mounted Ball Valves | 446 SS Ball Valves Exporter |
Stainless Steel 904L Ball Valves Stockholder | Stainless steel V-Ball Control Valves |
Threaded Stainless Steel Ball Valve | Stainless steel 1/2/3PC Threaded Ball Valves |
Stainless steel flanged ball valve | Stainless steel 2000 PSI 2-piece Ball Valves |
Stainless steel Two-piece 2,000 PSI Ball Valve | Stainless steel moderate-pressure ball valve |
Stainless Steel 2-Way Sanitary Ball Valves | Stainless steel Trunnion Mounted Ball Valve |
Stainless steel 2 piece body ball valve | Stainless steel Trunnnion and Floating Ball Valve |
1/2/3PC Threaded Stainless steel Ball Valve Valve Supplier | Stainless steel Split body ball valve with full bore |
Stainless steel Flanged Ball Valve Class 150 & 300 | Industrial 2-piece Full Port Stainless steel Ball Valve |
Stainless steel Ball Valve Manufacturer | Stainless steel 2 piece trunnion ball valve |
1000 psi (PN63) Stainless steel ball valve | Stainless steel 3-ways ball valve |
Call +91 9833263204 or Click here to send enquiry for Ball Valve
Other Material Grades of Ball Valves
DESCRIPTION | UNS GRADE | FORGING | CASTING | BARSTOCK |
---|---|---|---|---|
Carbon Steel | K30504 | A105 | A216 WCB | A105 |
Low Temp Carbon | K03011 | A350 LF2 | A352 LCB | A350 LF2 |
High Yield Steel | K03014 | A694 F60 | - | A694 F60 |
3 1/2 Nickel Steel | K32025 | A350 LF3 | A352 LC3 | A350 LF3 |
5 Chrome, 1/2 Moly | K41545 | A182 F5 | A217 C5 | A182 F5 |
1 1/4 Chrome, 1/2 Moly | K11597 | A182 F11 | A217 WC6 | A182 F11 |
2 1/4 Chrome, 1 Moly | K21590 | A182 F22 | A217 WC9 | A182 F22 |
9 Chrome, 1 Moly | K90941 | A182 F9 | A217 WC6 | A182 F9 |
13 Chrome | S41000 | A182 F6A | A351 CA15 | A276 or A479 410 |
304 | S30400 | A182 F304 | A351 CF8 | A276 or A479 304 |
304L | S30403 | A182 F304L | A351 CF3 | A276 or A479 304L |
316 | S31600 | A182 F316 | A351 CF8M | A276 or A479 316 |
316L | S31603 | A182 F316L | A351 CF3M | A276 or A479 316L |
317L | S31703 | A182 F317L | A351 CG8M | A276 or A479 317L |
321 | S32100 | A182 F321 | - | A276 or A479 321 |
347 | S34700 | A182 F347 | A351 CF8C | A276 or A479 347 |
17-4PH | S17400 | A564 630 | - | - |
Alloy 400 | N04400 | B564 N04400 | A494 M35-1 | B164 N04400 |
Alloy K500 | N05500 | - | - | B865 N05500 |
Alloy 800 | N08800 | B564 N08810 | - | B408 N08800 |
Alloy 825 | N08825 | - | - | B425 N08825 |
Alloy 600 | N06600 | B564 N06600 | A494 CY40 | B166 N06600 |
Alloy 625 | N06625 | B564 N06625 | A494 CW 6MC | B446 N06625 |
Alloy B2 | N10665 | B564 N10665 | A494 N 12MV | B335 N10665 |
Alloy C | N10002 | - | A494 CW6M | - |
Alloy C22 | N06022 | B574 N06022 | A494 CX2MW | B574 N06022 |
Alloy C276 | N10276 | B564 N10276 | A494 CW12 MW | B574 N10276 |
22% Duplex | S31803 | A182 F51 | A890 Gr 4A | A276 or A479 S31803 |
25% Duplex | S32750 or 32760 | A182 F53 | A890 Gr 6A | A276 or A479 S32750 or 60 |
254SMO | S31254 | A182 F44 | A351 CK3MCuN | A182 F44 |
904L | N08904 | B625 N08904 | - | B649 N08904 |
Titanium | R50400 | B381 F2 | B367 C2 | B348 Gr 2 |
Ball Valves Sizes
Ball Valves size guide | Ball Valves size chart | Ball Valves size table |
Ball Valves price | Ball Valves specifications | Ball Valves dimensions |
Ball Valves Price List
- Trunnion ball valve 6000psi instrumentation ball valve
(FOB Price: US $1-30 / Piece) - One piece Instrument Stainless Steel Three Way Ball Valve
(FOB Price: US $8-50 / Set) - stainless steel 316 / Hastelloy 1500psi Female Ball Valve One-piece Instrumentation Ball Valve
(FOB Price: US $25.0 / Piece) - SS316 NPT 1/4" high pressure One-piece Instrumentation 3 way ball valve
(FOB Price: US $7.5-50 / Piece) - instrumentation ferrule ball valve
(FOB Price: US $1-10000 / Ton) - reduced port instrument stainless steel ball valve
(FOB Price: US $30-200 / Piece) - High performance zero leak instrument ball valve with single action
(FOB Price: US $8-8000 / Set) - SS304 3 Way 1/4 NPT Female Thread One-piece Instrumentation Ball Valve
(FOB Price: US $12-23 / Piece) - no leak forged instrumentation ball valve
(FOB Price: US $23.15-24.52 / Piece) - high quality low price instrumentation ball valve
(FOB Price: US $1.2-13 / Piece) - instrument ball valve
(FOB Price: US $9.6-500 / Piece) - 1 piece instrumentation ball valve 2500psi, female thread ball valve
(FOB Price: US $1-30 / Piece) - 1/4 female npt 2 way instrument ball valves ss316 ball valve lpg gas cf8m stainless steel ball valve
(FOB Price: US $30-100 / Piece) - stainless steel ss 316 1/4" 3000 psi high pressure panel mounted gas instrument ball valve
(FOB Price: US $20-40 / Set) - A105 Ball Valve,Instrumentation Ball Valve
(FOB Price: US $30-5000 / Piece) - Instrumentation SS316 3PC Ball Valve- 6000 PSIG Male Thread 2 Way Ball Valve
(FOB Price: US $24.0 / Pieces) - stainless steel instrumentation ball valve supplier
(FOB Price: US $3-39 / Piece) - Stainless steel 1pc instrument ball valves,2500 psi
(FOB Price: US $10-30 / Piece)
Ball Valves Stock
A216 WCB Ball Valves | A352 LCB Ball Valves |
A352 LC3 Ball Valves | A217 C5 Ball Valves |
A351 CF8 Ball Valves | A351 CF3 Ball Valves |
A351 CF8C Ball Valves | A494 M35-1 Ball Valves |
A494 CY40 Ball Valves | A494 CW 6MC Ball Valves |
A494 N 12MV Ball Valves | A494 CW6M Ball Valves |
A494 CW12 MW Ball Valves | A890 Gr 4A Ball Valves |
A890 Gr 6A Ball Valves | A351 CK3MCuN Ball Valves |
B367 C2 Ball Valves | K30504 Ball Valves |
A351 CG8M Ball Valves | K03011 Ball Valves |
K03014 Ball Valves | A351 CF3M Ball Valves |
K32025 Ball Valves | K11597 Ball Valves |
K21590 Ball Valves | K90941 Ball Valves |
S41000 Ball Valves | S30400 Ball Valves |
S30403 Ball Valves | S31600 Ball Valves |
A217 WC9 Ball Valves | S31603 Ball Valves |
S31703 Ball Valves | A217 WC6 Ball Valves |
A217 WC6 Ball Valves | K41545 Ball Valves |
A351 CA15 Ball Valves | S32100 Ball Valves |
S34700 Ball Valves | UNS S17400 Ball Valves |
N04400 Ball Valves | N05500 Ball Valves |
N08800 Ball Valves | N08825 Ball Valves |
N06600 Ball Valves | N06625 Ball Valves |
N10665 Ball Valves | A890 Gr. 5A Ball Valves |
A890 Gr. 6A Ball Valves | A995 5A Ball Valves |
A995 6A Ball Valves | A182 F53 Ball Valves |
A182 F55 Ball Valves | 2207 alloys Ball Valves |
N10002 Ball Valves | N06022 Ball Valves |
N10276 Ball Valves | S31803 Ball Valves |
S32750 Ball Valves | S32760 Ball Valves |
S31254 Ball Valves | N08904 Ball Valves |
R50400 Ball Valves | A351 CF8M Ball Valves |
A494 CX2MW Ball Valves |
Ball Valves Application
Off-Shore Oil Drilling Companies | Power Generation | Petrochemicals | Gas Processing |
Specialty Chemicals | Pharmaceuticals | Pharmaceutical Equipment | Chemical Equipment |
Sea Water Equipment | Heat Exchangers | Condensers | Pulp & Paper Industry |
Ball Valves Manufacturer & Supplier
Ball Valves manufacturer in india | Ball Valves supplier in india | Ball Valves manufacturer in Mumbai |
Ball Valve Exporters & Suppliers
Exporting Ball Valve to Countries
We are exporting Ball Valve to Kuwait, Yemen, Slovakia, Iran, Angola, Portugal, Romania, Serbia, China, Saudi Arabia, Afghanistan, Croatia, Lithuania, Poland, Zimbabwe, Peru, Macau, Japan, Philippines, Singapore, Mexico, Mongolia, Hong Kong, Norway, Israel, Bangladesh, Bhutan, Kenya, South Korea, Switzerland, Thailand, Gabon, Italy, Mexico, Sri Lanka, Netherlands, Turkey, Czech Republic, Tibet, Australia, Morocco, Nepal, Denmark, Iran, United Arab Emirates, Jordan, Belarus, Russia, Chile, Ukraine, Oman, Kazakhstan, Taiwan, Argentina, Finland, Chile, Ghana, Azerbaijan, Brazil, Ireland, Nigeria, Indonesia, Ecuador, Lebanon, Gambia, Sweden, Bulgaria, Hungary, India, United Kingdom, Vietnam, Greece, United States, France, Spain, Libya, Pakistan, Canada, Namibia, Poland, Bahrain, Bolivia, Venezuela, Qatar, Iraq, Austria, Belgium, Nigeria, Germany, South Africa, Malaysia, Egypt, Algeria, Costa Rica, Estonia, Trinidad & Tobago,Tunisia, Puerto Rico, New Zealand, Colombia. We can export almost to any country.
Industries We Serve
We are supplying Ball Valve to Chemicals, Petrochemicals, Oil & Natural Gas Organization, Fats, Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Automation, Paints, Steel Industries, etc.
