Gate Valve

Gate Valve

Best in Class Gate Valve / Knife Gate Valve Manufacturer & Supplier in India

Stainless Steel Gate Valves, Carbon Steel Knife Gate Valves, Alloy Steel Gate Valves, Brass Knife Gate Valves, Aluminium Gate Valves Stockist & Exporter

Gate Valve / Knife Gate Valve are a mechanism which consists of a circular gate, which on rotating allows liquid flow. Nakshatra Steel & Alloys is a renowned Gate Valve Manufacture & Supplier in the contemporary market. For the great demand of our products, we always maintain sufficient quantity of Gate Valves Stock.

The exceptional Gate Valve Properties attract more number of customers towards us. Being an eminent Knife Gate Valve Supplier, we always maintain friendly relations with all of our clientele. Features and prices of all of our products can be noticed in our Knife Gate Valve Stock list. We contribute all of our goods at economical market prices.

As per the industrial requirements of our customers, we design our mechanisms with appropriate Gate Valve / Knife Gate Valve Specifications. We enhance the properties of our Stainless Steel Gate Valves by adding small quantities of special chemical elements. Our Alloy Steel Gate Valves are a combo of components like Molybdenum, Silicon, Chromium, Boron, Vanadium, and Nickel.

Our Aluminium Knife Gate Valves and Brass Knife Gate Valves are noted for their ease, durability, and flexibility. We properly train our employment personnel to use modern techniques while designing Bronze Knife Gate Valves.

All the properties and features of our products are perfectly showcased. Choose the product of your choice, and place your order right now. In case of any queries, feel free to get in touch with us!

Gate Valves

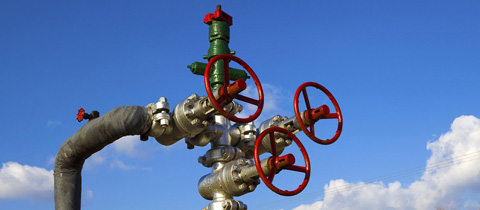

SS Gate Valves

Gate Valve Specifications:

Type : Bolted Bonnet O. S. & Y Type Rising Stem
Size : 25mm to 1000mm
Pressure Rating : ASA 125#, 150#, 300#, 600#, 900#, 1500#, 2500#
Design & Mfg. Standard : API 600, API 6D, MSS SP-81, BS 1414
Inspection & Testing Standard : API 598
Body Material : WCB, Cast Iron, CF8, CF8M, CS, SS, AS, LCB, WC6, WC9, Alloy 20
Trim Materials : 13% Cr. Stellited, AISI 304/316/Monel
End Connection : Screwed to BSP, BSPT, NPT, Socket Weld, Flanged Ends, Ring Type Joints(RTJ), Butt Welded as per ANSI B 16.5 / B 16.25
Face to Face Dimension : ANSI B 16.10

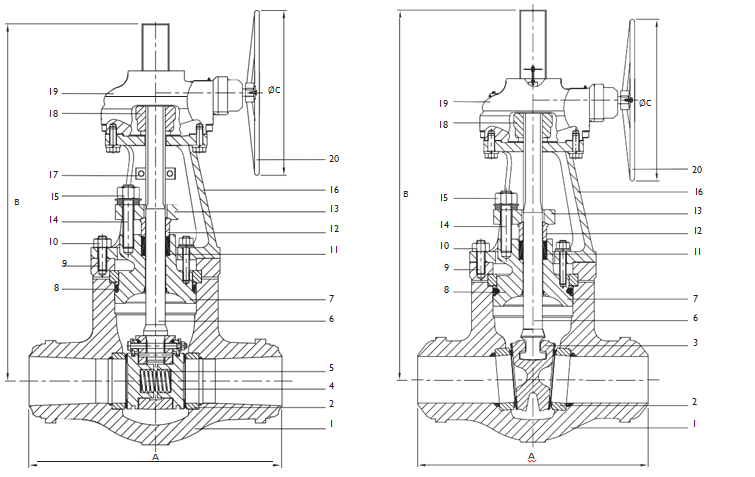

Dimensions of Gate Valves

Standards

Standards

Parameter Standard
Design Gate Valves ASME B16.34 API 600
Globe Valves API 623
Check Valves API 594
Ends Face-to-face/ End-to-end Dimensions ASME B16.10
End Flange Dimensions ASME B16.5/ 16.47
Butt-weld End Dimensions ASME B16.25
Forged Fittings, Socket welding &

Threading Dimensions

 ASME B16.11

Parallel-slide Gate Valves - Dimensions & Weights

Parallel-slide Gate Valves - Dimensions & Weights

Gate Valves
Size Class 900 Class 1500 Class 2500 Class 3100
NPS DN A B C Wt. A B C Wt. A B C Wt. A B C Wt.
3 80 305 580 305 65 305 580 305 65 368 580 500 130 368 710 400 140
4 100 356 710 355 110 406 610 400 120 457 580 500 165 457 785 400 280
6 150 508 670 630 235 559 710 630 270 610 765 710 350 610 1090 710 545
8 200 660 815 710 380 711 825 710 500 762 930 800 690 762 1200 900 925
10 250 787 1025 900 720 864 1025 900 900 914 1020 900 1250 914 1420 800 1470
12 300 914 1105 900 1000 991 1110 900 1100 1041 1440 1000 1900 1041 1661 800 2340
14 350 991 1150 900 1200 1067 1320 1000 1700 1118 1600 1000 2900 1118 1715 800 3400
16 400 1092 1560 1000 1660 1194 1600 1000 2250 1245 1910 800 3900 1245 1890 800 4000
18 450 1219 1945 800 2500 1346 1680 1000 3470 1397 2220 900 4620 1397 2200 900 5540
20 500 1321 2150 800 2950 1473 1980 1000 4550 1537 2550 800 6760 1524 2390 1000 7130
24 600 1549 2550 800 4225 1943 2570 1000 6600 1549 2920 900 8760
28 700 1727 2775 1000 6300

Flex Wedge Gate Valves - Dimensions & Weights

Flex Wedge Gate Valves - Dimensions & Weights

Gate Valves
Size Class 600 Class 900 Class 1500 Class 2500
NPS DN A B C Wt. A B C Wt. A B C Wt. A B C Wt.
2 50 292 405 203 25 216 470 228 40 216 460 228 40 279 445 228 55
3 80 254 545 254 45 305 590 305 65 305 615 356 75 368 850 500 150
4 100 305 690 305 80 356 690 356 110 406 810 500 145 457 810 500 190
6 150 457 900 508 350 508 1105 710 250 559 1110 710 330 610 1140 710 520
8 200 584 1200 500 300 660 1290 710 380 711 1360 800 680 762 1400 900 1100
10 250 711 1455 710 720 787 1445 800 720 864 1580 900 1000 914 1720 1000 2100
12 300 838 1680 710 1150 914 1810 900 1150 991 1810 1000 1580 1041 1830 1000 2205
14 350 889 1815 800 1165 991 1925 900 1420 1067 2015 1000 2200 1118 2030 1000 3400
16 400 991 2140 900 1510 1092 2145 1000 2000 1194 2215 1000 2750 1245 2240 1000 4600
18 450 1092 2270 710 2650 1219 2260 800 2650 1346 2300 900 3915 1397 2410 900 5500
20 500 1194 2630 1000 3040 1334 2600 900 4270 1473 2590 900 5150 1473 2650 1000 6980
24 600 1397 2850 710 5100 1549 3410 1000 5100 1943 3070 900 7500 1549 3070 1000 10600
30 750 1651 3625 1000 6600 1816 3770 900 6600 2229 3700 710 13500
32 800 1778 3850 1000 8550 1778 3855 1000 10975
36 900 2083 4100 1000 10500

All dimensions in mm and weights in kg

Types Of Gate Valves

Gate Valve Manufacture Gate Valve Supplier
Gate Valves Stock Gate Valve Properties
Knife Gate Valve Supplier Knife Gate Valve Stockist
Stainless Steel Gate Valves Alloy Steel Gate Valves
Aluminium Knife Gate Valves Brass Knife Gate Valves
Bronze Knife Gate Valves

Call +91 9833263204 or Click here to send enquiry for Gate Valve

Other Material Grades of Gate Valves

DESCRIPTION UNS GRADE FORGING CASTING BARSTOCK
Carbon Steel K30504 A105 A216 WCB A105
Low Temp Carbon K03011 A350 LF2 A352 LCB A350 LF2
High Yield Steel K03014 A694 F60 - A694 F60
3 1/2 Nickel Steel K32025 A350 LF3 A352 LC3 A350 LF3
5 Chrome, 1/2 Moly K41545 A182 F5 A217 C5 A182 F5
1 1/4 Chrome, 1/2 Moly K11597 A182 F11 A217 WC6 A182 F11
2 1/4 Chrome, 1 Moly K21590 A182 F22 A217 WC9 A182 F22
9 Chrome, 1 Moly K90941 A182 F9 A217 WC6 A182 F9
13 Chrome S41000 A182 F6A A351 CA15 A276 or A479 410
304 S30400 A182 F304 A351 CF8 A276 or A479 304
304L S30403 A182 F304L A351 CF3 A276 or A479 304L
316 S31600 A182 F316 A351 CF8M A276 or A479 316
316L S31603 A182 F316L A351 CF3M A276 or A479 316L
317L S31703 A182 F317L A351 CG8M A276 or A479 317L
321 S32100 A182 F321 - A276 or A479 321
347 S34700 A182 F347 A351 CF8C A276 or A479 347
17-4PH S17400 A564 630 - -
Alloy 400 N04400 B564 N04400 A494 M35-1 B164 N04400
Alloy K500 N05500 - - B865 N05500
Alloy 800 N08800 B564 N08810 - B408 N08800
Alloy 825 N08825 - - B425 N08825
Alloy 600 N06600 B564 N06600 A494 CY40 B166 N06600
Alloy 625 N06625 B564 N06625 A494 CW 6MC B446 N06625
Alloy B2 N10665 B564 N10665 A494 N 12MV B335 N10665
Alloy C N10002 - A494 CW6M -
Alloy C22 N06022 B574 N06022 A494 CX2MW B574 N06022
Alloy C276 N10276 B564 N10276 A494 CW12 MW B574 N10276
22% Duplex S31803 A182 F51 A890 Gr 4A A276 or A479 S31803
25% Duplex S32750 or 32760 A182 F53 A890 Gr 6A A276 or A479 S32750 or 60
254SMO S31254 A182 F44 A351 CK3MCuN A182 F44
904L N08904 B625 N08904 - B649 N08904
Titanium R50400 B381 F2 B367 C2 B348 Gr 2

Gate Valves Sizes

Gate Valves size guide Gate Valves size chart Gate Valves size table
Gate Valves price Gate Valves specifications Gate Valves dimensions

Gate Valves Price List

Gate Valves price in india Gate Valves price list Gate Valves price
Gate Valves price per kg Gate Valves rate

Gate Valves Stock

Gate Valves ready stock Gate Valves stockist Gate Valves standard list

Gate Valves Application

Off-Shore Oil Drilling Companies Power Generation Petrochemicals Gas Processing
Specialty Chemicals Pharmaceuticals Pharmaceutical Equipment Chemical Equipment
Sea Water Equipment Heat Exchangers Condensers Pulp & Paper Industry

Gate Valves Manufacturer & Supplier

Gate Valves manufacturer in india Gate Valves supplier in india Gate Valves manufacturer in Mumbai

Gate Valve / Knife Gate Valve Exporters & Suppliers

Exporting Gate Valve / Knife Gate Valve to Countries

We are exporting Gate Valve / Knife Gate Valve to Kuwait, Yemen, Slovakia, Iran, Angola, Portugal, Romania, Serbia, China, Saudi Arabia, Afghanistan, Croatia, Lithuania, Poland, Zimbabwe, Peru, Macau, Japan, Philippines, Singapore, Mexico, Mongolia, Hong Kong, Norway, Israel, Bangladesh, Bhutan, Kenya, South Korea, Switzerland, Thailand, Gabon, Italy, Mexico, Sri Lanka, Netherlands, Turkey, Czech Republic, Tibet, Australia, Morocco, Nepal, Denmark, Iran, United Arab Emirates, Jordan, Belarus, Russia, Chile, Ukraine, Oman, Kazakhstan, Taiwan, Argentina, Finland, Chile, Ghana, Azerbaijan, Brazil, Ireland, Nigeria, Indonesia, Ecuador, Lebanon, Gambia, Sweden, Bulgaria, Hungary, India, United Kingdom, Vietnam, Greece, United States, France, Spain, Libya, Pakistan, Canada, Namibia, Poland, Bahrain, Bolivia, Venezuela, Qatar, Iraq, Austria, Belgium, Nigeria, Germany, South Africa, Malaysia, Egypt, Algeria, Costa Rica, Estonia, Trinidad & Tobago,Tunisia, Puerto Rico, New Zealand, Colombia. We can export almost to any country.

Industries We Serve

We are supplying Gate Valve / Knife Gate Valve to Chemicals, Petrochemicals, Oil & Natural Gas Organization, Fats, Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Automation, Paints, Steel Industries, etc.
